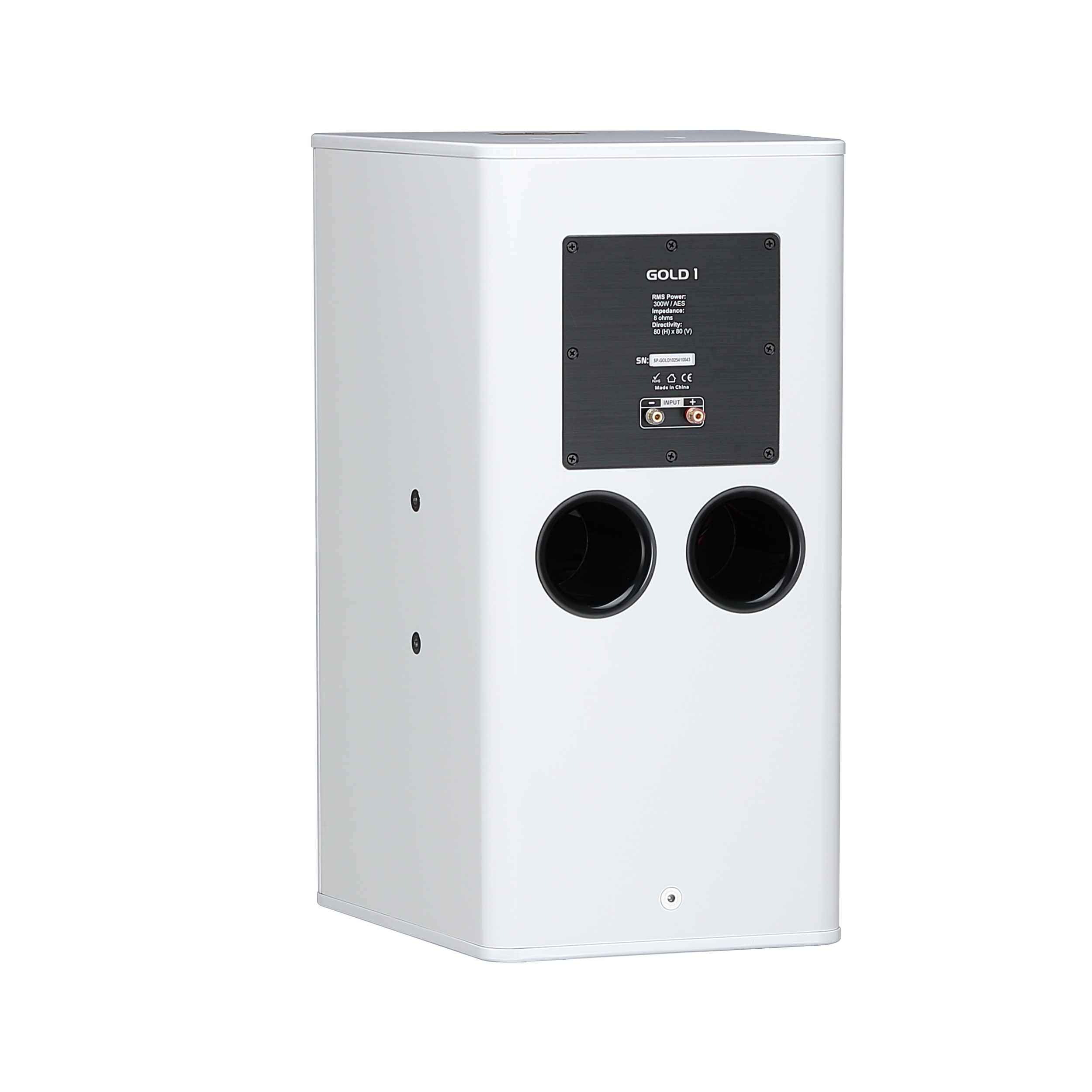

Karaoke Speaker
GOLD1
AT A GLANCE
Real 300W RMS power capacity
HiFi sound for near field application
Two-way with very good phase response
Premium custom made European driver
APPLICATIONS
GOLD1 loudspeaker system is suitable for near field
HiFi home concert reinforcement installation.
Suitablein spaces like:
-High fidelity music playback
-Multi-functional room
-High-grade solo concert
-High-grade home theater
SPECIFICATIONS
| Power handling (50~15000Hz pink noise 8 hours) | 300W RMS/1200W Peak |
| Nominal impedance | 8 Ohm |
| Frequency response | 48~20000Hz |
| Manufacturing Consistency tolerance | ±2dB from 300 to 10000Hz |
| Average Sensitivity (wideband 100~16000Hz) | 95dB/W/m |
| Calculated Maximum SPL /1m | 120dB continuous/126dB Peak |
| Nominal Directivity (-6dB) | 80°x80° above 1200Hz |
| Low Frequency driver |
Custom made 10"C-sichang driver
Ferrite magnet, 2.5” In / Out Voice coil |
| High Frequency driver |
1”exit Csichang
Neodymiun magnet, 1.7” coaxial HF |
| Crossover |
Passive mode only
2200Hz,12dB/oct on LF, 12dB/oct on HF |
| Connectors | Fasten connector |
| Cabinet |
CNC made with tongue and grove assembly
15+25mm high density wood |
| Finish | white or black matte 7 layers finish |
| Size (WxDxH) | 325x320x560mm |
| Weight |
19kg net, 22kg gross |
